12v Fan Battery Set Full Speed 12 Hours Working For Cooling Jacket
Vest
Product Introduction:
Fan
Fan cover: Plastic ABS Black color
Fan blade quantity: 7pcs Red color
Cover and blade other color can be made
Fan size:
Outer diameter: 105mm
Thickness: 34mm
Fan weight: 94g/pcs *2pcs=188g
Motor: Chinese Brushless
Package: White box
Including 2pcs fan + 1pcs DC cable
Battery
Output 1: DC 12v specially used for fan for air conditioned clothes
The LED light shown green color to indicate output voltage
LED green lights & voltage output & Fan working time
4pcs green lights 12V 10~12H (High speed)
3pcs green lights 10V 15~17H (Medium speed)
2pcs green lights 8V 25~27H (Medium speed)
1pcs green lights 6V 50~52H (Low speed)
Output 2: USB 5V charging for other 5V electronic products
Battery power indicator the LED light shown white color
LED white lights & battery power remain
4pcs white lights 75~100%
3pcs white lights 50~75%
2pcs white lights 25~50%
1pcs white lights 0~25%
Battery type: Polymer battery
Battery capacity: 12V 20000mAh
Battery case material: Plastic ABS
Battery size:L142*W68*Thk28mm
Weight: 401g/pcs
Package: White box
Including 1pcs battery + 1pcs USB charging cable

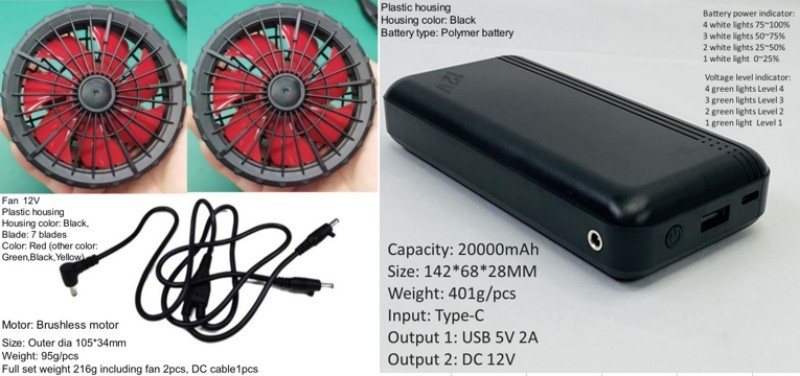

Product picutre
12v Fan Battery Set Full Speed 12 Hours Working For Cooling Jacket
Vest
Product Specification
| Product name | Fan battery set 12V 20000mAh |
| Fan material | Plastic ABS |
| Fan blade quantity | 7pcs Red color |
| Fan size | Outer diameter 105mm*Thk34mm |
| Fan weight | 94g/pcs; 2pcs&DC cable 200g |
| Fan motor | Chinese brushless motor |
| Fan voltage | 12V |
| Battery case material | Plastic ABS |
| Battery type | Polymer battery |
| Battery capacity | 12V 20000mAh |
| Size | L142*W68*Thk28mm |
| Weight | 401g/pcs |
| Power indicator | White light 4 LED lights |
| Voltage indictor | Green light 4 LED lights |
| 4pcs LED white light | Battery capcaity 75%-100% | 4pcs LED green light | Output Voltage 12V |
| 3pcs LED white light | Battery capcaity 50%-75% | 3pcs LED green light | Output Voltage 10V |
| 2pcs LED white light | Battery capcaity 25%-50% | 2pcs LED green light | Output Voltage 8V |
| 1pcs LED white light | Battery capcaity 0%-25% | 1pcs LED green light | Output Voltage 6V |
